Description

A piece of clear heatshrink supplied loose for custom cable branding with 2:1 shrink ratio. Heat shrinkable transparent polyolefin semi-rigid, gloss surface, thin walled sleeving, shrinks to 50% of original diameter. Designed for applications requiring a very thin walled covering (0.1mm).

Shrink temperature 110-135°C. Working voltage 600V, breakdown voltage 2.5kV. Operating temperature -55 degrees (no cracking) to 135 degrees C.

Supplied flat in 200mm lengths. All types are priced and sold per piece.

We recommend, as a guide;

• 12.7mm for 1.5mm 3-core cable
• 19.1mm for 2.5mm, 4mm and 6mm 3-core cable

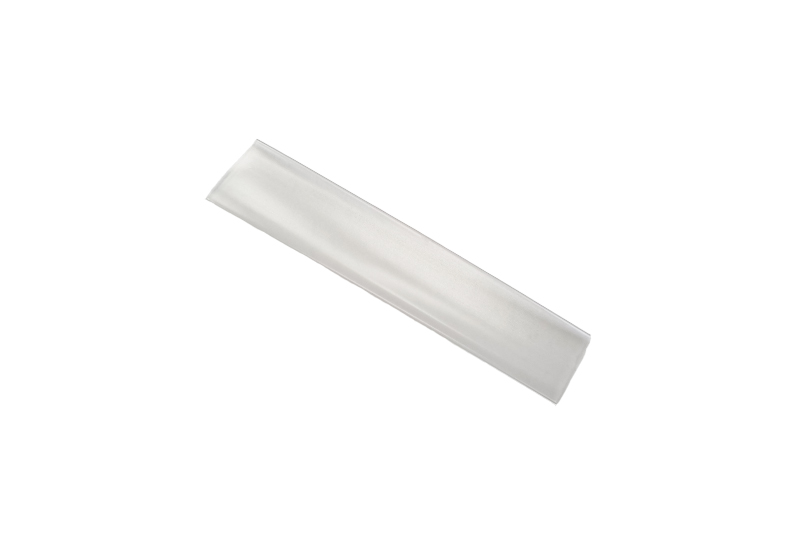

Main photo shows a 100mm length of 12.7mm clear heatshrink, for illustration purposes only and is not to scale.
Sizes shown are the internal diameter before shrinking.
